商品詳情
-
此售價不含原廠變壓器,
若要加購原廠變壓器,可搜尋賣場中的商品名稱 BOSS 9V 變壓器（PSA-120TW）※產 品 特 色 BOSS SD-1W 失真破音吉他效果器
全新設計SD-1升級版
Waza Craft團隊特別工藝版由BOSS充滿熱情的日本主工程師設計並提供一個優質的效果器踏板工藝習慣靈活制定自己音色的玩家一定會喜歡!在SD-1W提供經典的Super Over Drive至一個全新水準的模擬電路
特色:．Waza Craft特別工藝版提供終極BOSS效果體驗．由經典SD-1為基礎發展．全模擬分立放大器電路．標準和自訂音效模式．高敏感度的力量程度變化
※ 尺 寸 規 格

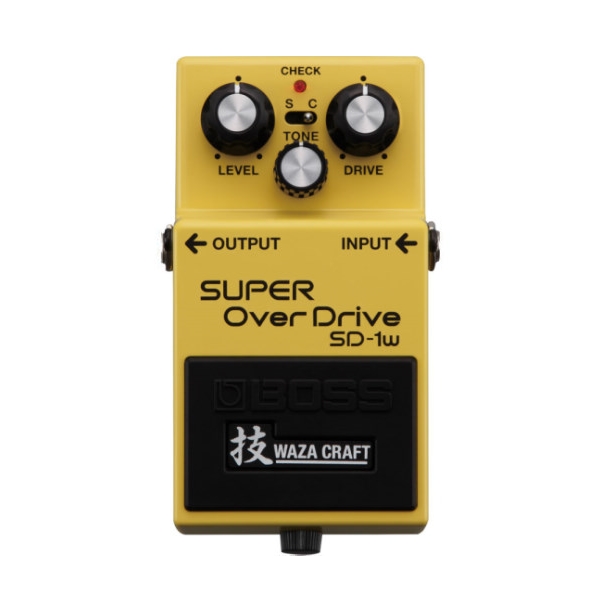

SD-1W: SUPER OverDriveWaza Craft Special Edition
- Specifications
- Nominal Input Level
- -20 dBu
- Input Impedance
- 1 M ohm
- Nominal Output Level
- -20 dBu
- Output Impedance
- 1 k ohm
- Recommended Load Impedance
- 10 k ohms or greater
- Controls
- Pedal switch
Mode switch
LEVEL knob
TONE knob
DRIVE knob - Indicator
- CHECK indicator (Serves also as battery check indicator)
- Connectors
- INPUT jack
OUTPUT jack
DC IN jack - Power Supply
- Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
AC adaptor (sold separately) - Current Draw
- 15 mA
- Accessories
- Owner's Manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")
Carbon-zinc battery (9 V, 6F22) - Option (sold separately)
- AC adaptor (PSA series)
- Size and Weight
- Width
- 73 mm
2-7/8 inches - Depth
- 129 mm
5-1/8 inches - Height
- 59 mm
2-6/16 inches - Weight
- 430 g
0 lbs. 16 oz. - * 0 dBu = 0.775 Vrms
小新樂器館
0800-666-989 免付費服務電話 .png)
手機直撥 02-2282-6082
BOSS SD-1W 失真破音吉他效果器【BOSS 效果器/Super Over Drive/五年保固】
TWD $6,400
